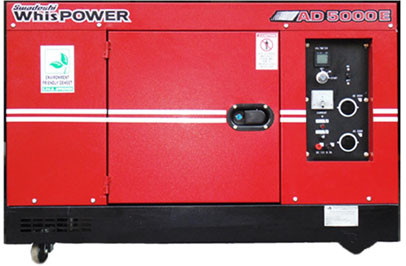

Model | AD5000E | |
---|---|---|
Alternator | Rated Frequency(Hz) | 50 (± 2) |
Rated Voltage | 230 V ± 5% | |
Output(KVA) | 5 KVA | |
Phase | Single | |
Type | Brushless, 2 pole | |
Protection | IP23 | |
Engine | Make and Model | Swadeshi Motors (SA5DE) |
Engine Type | Single cylinder, air-cooled, four stroke, diesel engine, silent, 3000 RPM |
|
Fuel | Diesel | |
HP | 7.2 | |
Governor | Mechanical / Electronic | |
Lubricating Mode | Splash lubrication | |
Starting Mode | Electric & Recoil | |
Genset | Safeties | Low Lube Oil Protection, OHTC, Over Load |
Battery Capacity | 12V | |
Fuel Tank | 15 litres | |
Aprox. Weight (Kg) | 195 | |
Dimensions (LXWXH) (mm) | 1150X680X770 | |
Control Panel | volt, Hour, Frequency, Ampere | |
Fuel level gauge | Yes | |
CPCB – II Complied | Yes |
